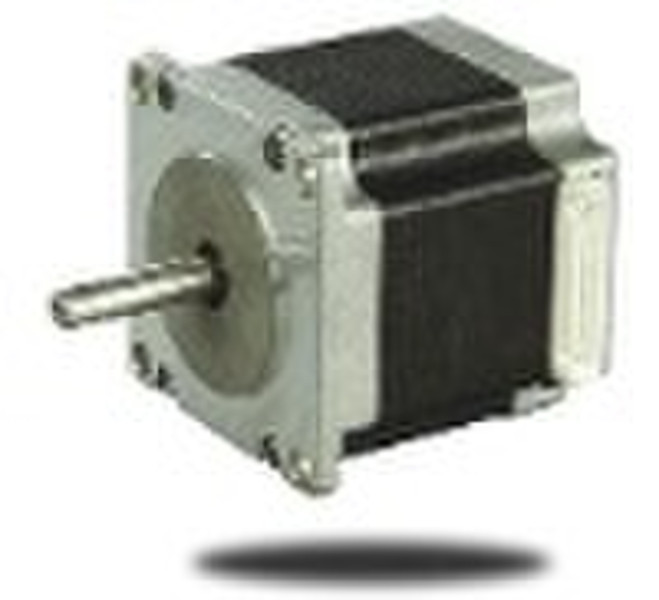

Hybrid stepping motor(NEMA23,57mm)

Hybrid stepping motor/stepping motor/ step motor We have been certificated by the ISO9000 RoHS Our mainly product is hybrid stepping motor and motor drivers. Typical applications: office automation, medical equipment, textile machinery, safety, lighting of stage, robot, vending and ticketing, automotive etc. NOTE: We can also manufacture products according to customers requirements. MODEL NUMBER Step Angle Degree Number Of Leads Resisitance Of Phase (Ohm) Inductance Of Phase (mH) Rated Current (A/Phase) Rated Voltage (V/Phase) Holding Torque (Kg.cm) Detend Torque (g.cm) Rotor Inertia (g.cm2) Weight (kg) (kg) Length (L=mm) 23HD0002 1.8° 4 12 20 0.5 6 4.0 220 135 0.42 41 23HD1001 12 28 0.6 7.2 7.0 260 180 0.45 45 23HD3002 12 40 0.6 7.2 9.6 320 220 0.55 51 23HD3003 7.5 22 0.88 6.6 9.8 320 220 0.55 51 23HD4002 12 20 0.5 6 4.0 400 400 0.6 55 23HD5002 1.65 6.0 2.3 3.8 15.1 700 460 1.0 76 Model Number 23HA100123HA100323HA200123HT200323HT300123HT3005Struction Hybrid Stepper Motor No. of Phase 2 Speed Various Speed(Low speed) Basic Step Angle 1.8 Degree Usage Industrial Function Control Shape Square Frame Size 56mmX56mm Shaft Style Single or Double Body Length 25mm,32mm,40mm,44mm Lead Wires 4 or 6 General Specification: Step Angle Accuracy ±5%(Full step, no load) Resistance Accuracy ±10%(20) Temperature Rise 80K MAX.(rated current,2 phases on) Ambient Temperature 2050 Insulation Resistance 100MΩ MIN.(500VDC) Insulation Strength 500VAC/1mA for one minute Insulation Class B Shaft Radial Play 0.02mm MAX.(450g-load) Shaft Axial Play 0.08mm MAX.(450g-load) Shaft Radial force 10Kg(20mm from the flange) Shaft Axial force 2Kg Rotation CW(see from front flange)
